Transpose the two-dimensional array within LabVIEW to change it to column-major order, and then reshape it to a one-dimensional array, as shown in the screenshot below.Generate the DLL using row-major array layout with MATLAB Coder. This allows the reshaped array to be passed directly to the DLL call with no further manipulation.There are two options to bridge the gap between these behaviors. For these pieces to communicate correctly, there needs to be a change in the structure of the data. When reshaping an array from two-dimensional to one-dimensional, LabVIEW builds the array in row-major order. When generating a DLL with MATLAB Coder, the default behavior is for the two-dimensional array to be built in column-major order. When calling this multidimensional array in LabVIEW, we must transform this complex two-dimensional array datatype into a simpler one-dimensional array using the Reshape Array function since the Import Shared Library Wizard does not support multi-dimensional arrays.

In the MATLAB Coder tutorial for building the Euclidean DLL, the two-dimensional 3x216 array, cb, was converted to a one-dimensional array of length 648 automatically by the MATLAB Coder.

Compare the results of the LabVIEW VI with the results in MATLAB from test.m and note that they are the same.

h file generated and put its path in that box, then click Next. If the name does not appear automatically, navigate to the. h file and put its name in the box below.

Matlab to labview .dll#

dll file in the Shared Library (.dll) File input.

Leave Create VIs for a shared library selected and click Next.

Click on Tools > Import > Shared Library (.dll)… to open the Import Shared Library Wizard.

The process is shown below with a DLL created with MATLAB Coder and the Euclidean DLL generated in the MathWorks tutorial. Once you have generated the DLL using MATLAB Coder, use the Import Shared Library Wizard to create a library of LabVIEW VIs. You can gather the required files by using the packNGo function. The files that will be used by LabVIEW are the generated DLL and the header file (.h).

Ensure that the Build Type is set to Dynamic Library (.dll).

Matlab to labview code#

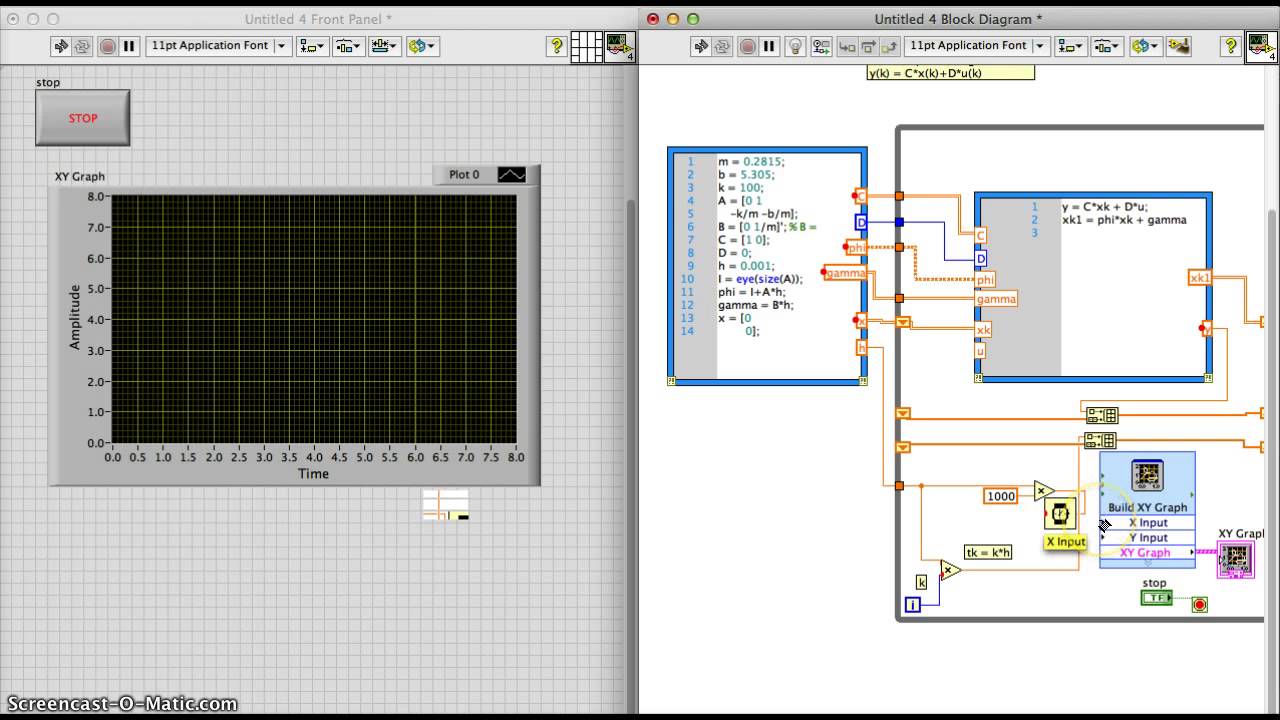

The most common mistake in using these nodes is forgetting to set the data type (e.g., 1-D array) of the input and output variables.To generate a DLL with the MATLAB Coder add-on, follow the steps in the MathWorks tutorial: Generate C Code by Using the MATLAB Coder App and the equivalent Generate C Code at the Command Line. This node sends the m-code to MATLAB for execution and then reads the results back in to LabVIEW.

Matlab to labview windows#

The MATLAB node only works on Windows and requires a copy of MATLAB to be running on the same machine. It doesn't have quite as extensive library of functions as MATLAB. The difference is that the MathScript node executes the code using LabVIEW's built-in interpreter and will work on any platform that runs LabVIEW. The MathScript Node and MATLAB Node use the syntax found in MATLAB ".m" files. Stacked Sequence/Flat Sequence Structureįor those who are tired of dragging icons and wires around, the Formula Node, the MathScript Node, and the MATLAB Node will permit you to write code in a more traditional manner and interface it with LabVIEW.The standard loop structures are available: Structures are used for program control such as looping.
